MDW External Electric Vibrator MVE Series For Construction Mining Foodstuff Application

Brand Name : MDW

Model Number : MVE200/3

Place of Origin : China

MOQ : 1set

Price : USD55~60/set

Supply Ability : 1000sets/day

Packaging Details : Currugated Carton

Payment Terms : T/T, LC, Trade assurance Order, Western Union

Size : Small

Centrifugal force : 20-40000kg

Model : MVE200/3

Frequency : 50Hz-60Hz

Voltage : 220V~690VAC

Warranty : 1 Year

Application : Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors, compaction tables, foundry diggers, fluid beds, spiral elevators.

Color : Red, Yellow, Can be customize

Poles : 2,4,6,8 poles

Insulation : F class

Contact Now

Multiple Voltages MDW External Electric Vibrator MVE Series For Construction Mining Foodstuff Application

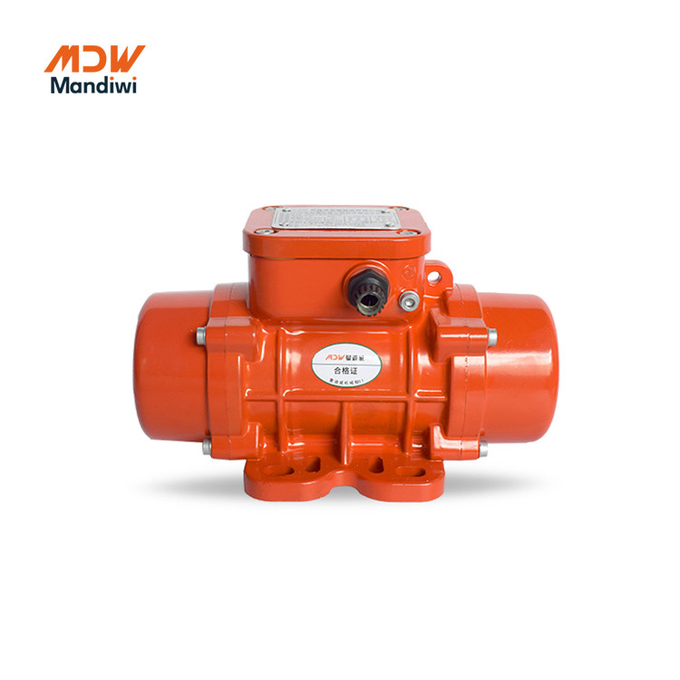

MVE series Vibration Motor

Electric vibrating motors (MVE) for general applications in various industrial sectors on machines and vibrating tables.

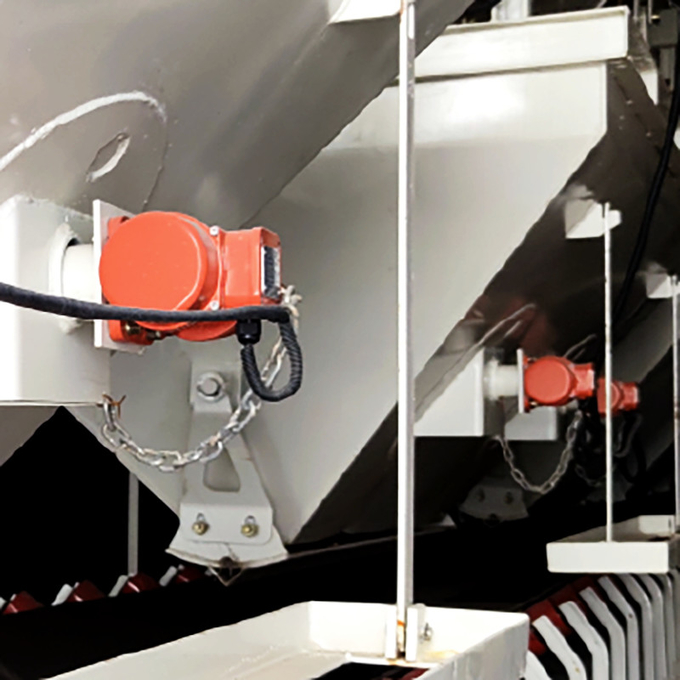

Applications

Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors, compaction tables, foundry diggers, fluid beds, spiral elevators.

MDW External Electric Vibrator MVE Series For Construction Mining Foodstuff Application

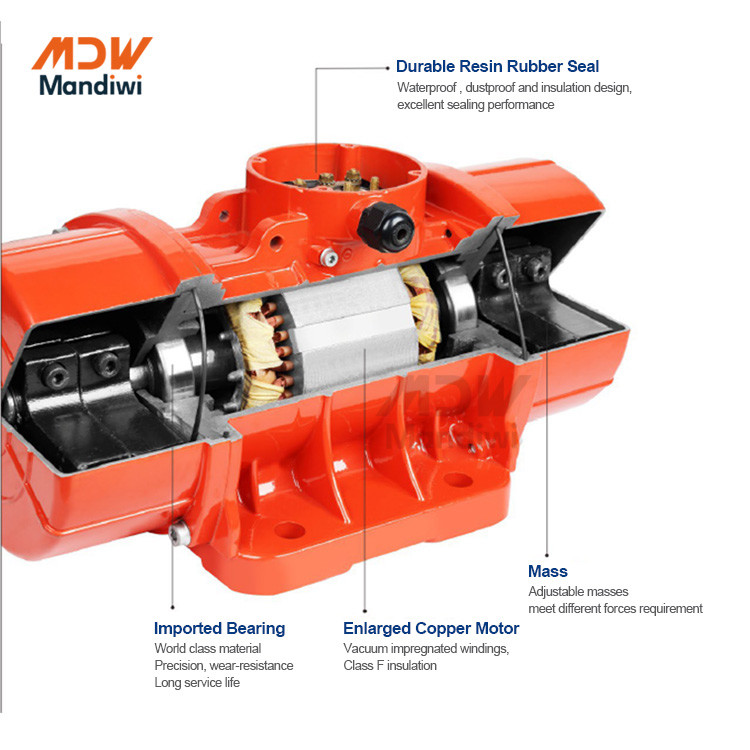

Features

Centrifugal force: 20 ~ 26,000 kg
Voltages 12 and 24 VDC, from 220 to 690VAC
Windings impregnated under vacuum with class F insulating materials
Optimized design and components for demanding applications.

Advantages

Greased for life = Zero maintenance *
Wide range of centrifugal forces for all applications
Different voltages available for global applications

* for special applications contact our technical service

Options

2, 4, 6, 8 poles, three-phase
2 single phase poles
Direct current

Product Paramenters

Model	Force		Power	Speed Rpm	Current	Weight	Size
Model	kg	kN	kw	r/min	(A max)	(Kg)	Size
MVE60/3 -10A0	71	0.7	0.04	2800	0.25	4.7	10A0
MVE100/3-10A0	102	1	0.04	2800	0.25	4.9	10A0
MVE200/3-10A0	102	1	0.09	2800	0.35	6.6	10A0
MVE200/3-20A0	204	2	0.09	2900	0.35	6.6	20A0
MVE300/3 -30A0	306	3	0.16	2800	0.52	10.2	30A0
MVE400/3 -30A0	408	4	0.2	2800	0.58	11	30A0
MVE500/3 -40A0	510	5	0.37	2800	0.96	16	40A0
MVE700/3 -40A0	714	7	0.45	2800	1.25	16.8	40A0
MVE800/3 -50A0	815	8	0.55	2800	1.45	20.1	50A0
MVE1200/3 -50A0	1019	10	0.75	2800	1.85	21.8	50A0
MVE1300/3 -50A0	1325	13	1.1	2800	2.44	23.9	50A0
MVE1600/3 -60A0	1631	16	1.25	2800	2.94	54	60A0

MDW External Electric Vibrator MVE Series For Construction Mining Foodstuff Application
