MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

Place of Origin : China

Brand Name : Mandiwi, Oli, etc

MOQ : 5 pieces

Price : $56.00/pieces 5-99 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

Delivery Time : 10-15 working days

Packaging Details : 1pcs per carton, with a waterproof bag

Applicable Industries : Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Core Components : Bearing, Motor

Condition : New

Voltage : 220V/380V, 220V/380V/ or customized

Weight : 5.0 kg

Warranty : 1 Year

UNIQUE SELLING POINT : High operating efficiency

Vibration frequency : 50HZ/60HZ

Application : Construction Mining Foodstuff Industries

Vibration Force : 1KN/2KN/Customize

Poles : 2/4/6/8poles

Speed : 3000rpm

Contact Now

Products Description:

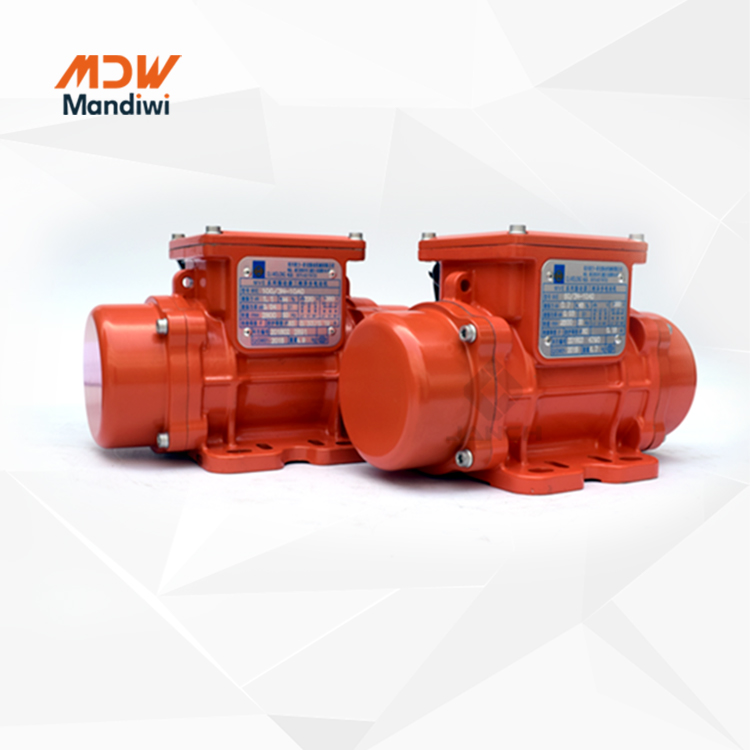

MVE Series Vibration Motor MVE100/3-60hz/3phase/220/380V For Industrial Applications

MDW electric vibrating motors can generate a centrifugal force up to 26,000 kg and are available in multiple voltages, such as 220V, 380V, 400V,etc. For this reason, the range of MDW industrial vibrators can be used in numerous sectors of application – from construction to the mining industry, from the foodstuff industry to recycling – in every country around the world.

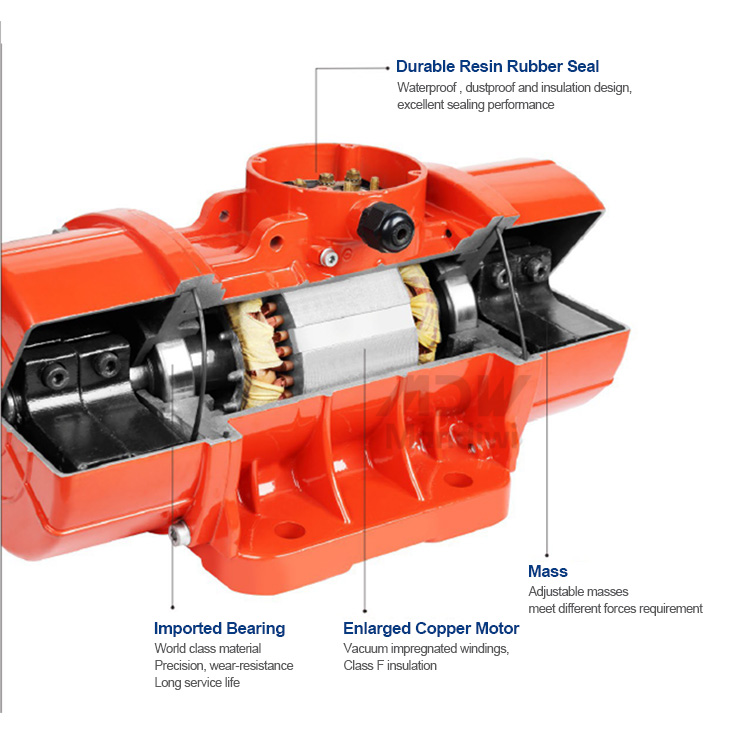

MDW electric vibrating motors were designed and assembled availing of the most recent technologies and using top quality materials and components. The motor casings, the support flanges and the shafts were designed according to FMEA criteria and are assembled using top quality aluminium alloys, cast iron and steel alloys, to allow the vibrator to deal with high intensity applications and guarantee safe operations in every condition.

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

Product Parameters:

Model Force Power Speed Rpm Current Weight Size
kg kN kw r/min (A max) (Kg)
MVE60/3 -10A0 71 0.7 0.04 2800 0.25 4.7 10A0
MVE100/3-10A0 102 1 0.04 2800 0.25 4.9 10A0
MVE200/3-10A0 102 1 0.09 2800 0.35 6.6 10A0
MVE200/3-20A0 204 2 0.09 2900 0.35 6.6 20A0
MVE300/3 -30A0 306 3 0.16 2800 0.52 10.2 30A0
MVE400/3 -30A0 408 4 0.2 2800 0.58 11 30A0
MVE500/3 -40A0 510 5 0.37 2800 0.96 16 40A0
MVE700/3 -40A0 714 7 0.45 2800 1.25 16.8 40A0
MVE800/3 -50A0 815 8 0.55 2800 1.45 20.1 50A0
MVE1200/3 -50A0 1019 10 0.75 2800 1.85 21.8 50A0
MVE1300/3 -50A0 1325 13 1.1 2800 2.44 23.9 50A0
MVE1600/3 -60A0 1631 16 1.25 2800 2.94 54 60A0

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

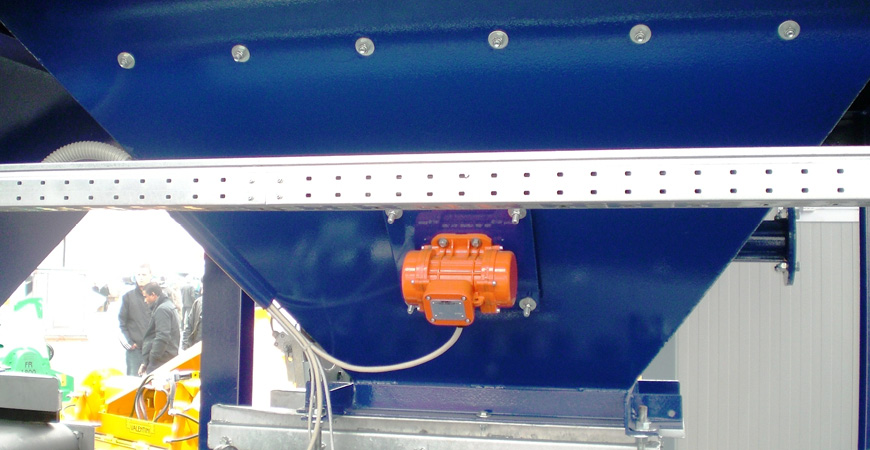

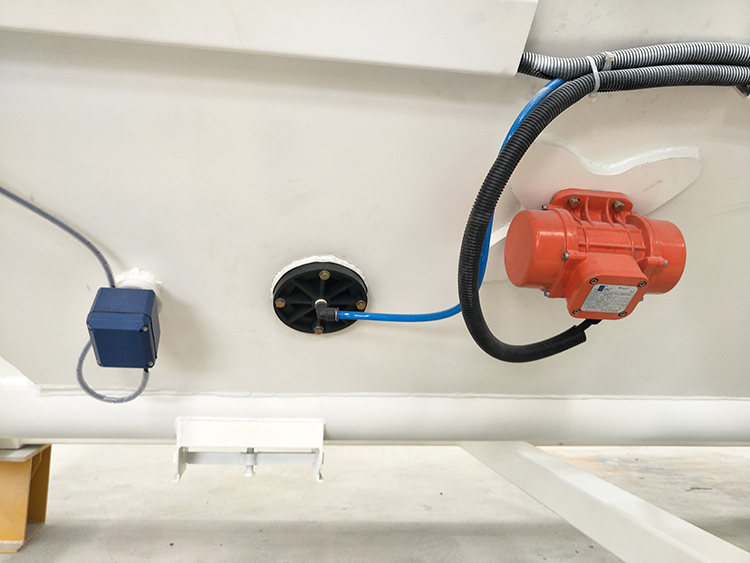

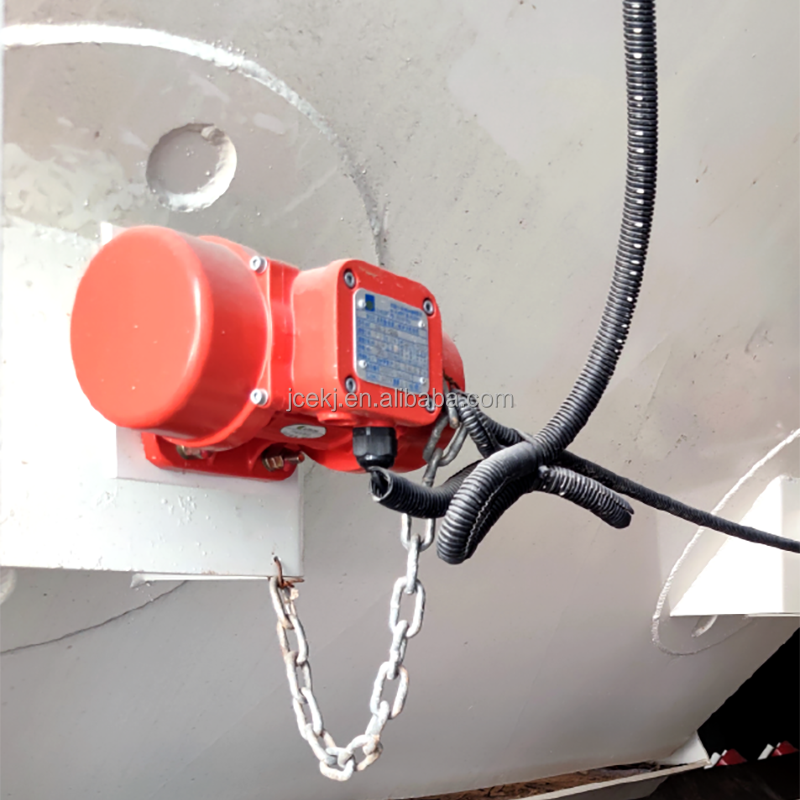

Application

Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors,

compaction tables, foundry diggers, fluid beds, spiral elevators.

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

Our Advantages

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

Company Profile

MVE Series Electric Vibration Motors MVE100/3-60hz/3phase/220/380V For Industrial

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
