603432 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators

Place of Origin : China

Brand Name : Oli

MOQ : 5 pieces

Price : $60.00/pieces 5-9 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

Delivery Time : 15 working days

Packaging Details : 1set per master carton, with a water-proof bag protect the vibrator

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Other

Showroom Location : None

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Pressure vessel

Condition : New

Type : External

Drive Mode : Electric Vibrator

Frequency : 740-18000rpm as options

Voltage : 200-600V as options

Weight : 25 kg

Dimension(L*W*H) : 60*34*32

Warranty : 1 Year

UNIQUE SELLING POINT : High operating efficiency

After-sales Service Provided : No overseas service provided

Color : orange or customized

Packing : Carton Box

Item : Concrete Bricks Making Machine Vibrating Table

Vibrating Frequency : 2900-6600vil/min

Vibrating Speed : 2860times/min

Contact Now

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators

Product Description

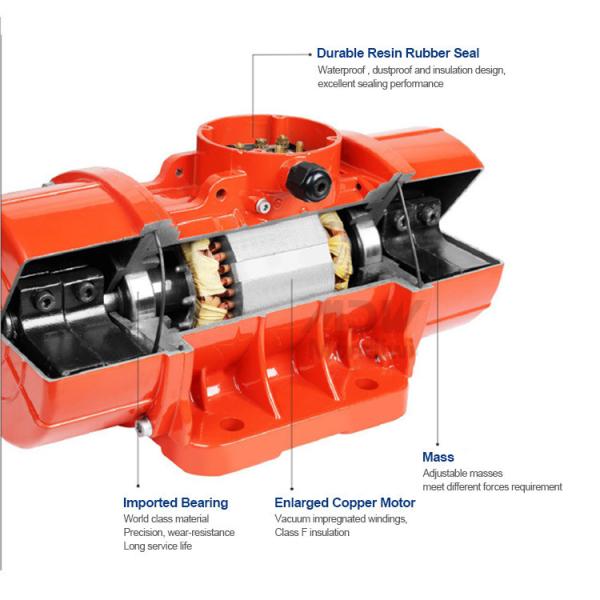

MDW electric vibrating motors were designed and assembled availing of the most recent technologies and using top quality materials and components. The motor casings, the support flanges and the shafts were designed according to FMEA criteria and are assembled using top quality aluminium alloys, cast iron and steel alloys, to allow the vibrator to deal with high intensity applications and guarantee safe operations in every condition.

60*34*32 Size Mandiwi Concrete Vibrating Motor for Cement Bin External Electric Vibrators

Product Parameters:

Model	Force		Power	Speed Rpm	Current	Weight	Size
Model	kg	kN	kw	r/min	(A max)	(Kg)	Size
MVE60/3 -10A0	71	0.7	0.04	2800	0.25	4.7	10A0
MVE100/3-10A0	102	1	0.04	2800	0.25	4.9	10A0
MVE200/3-10A0	102	1	0.09	2800	0.35	6.6	10A0
MVE200/3-20A0	204	2	0.09	2900	0.35	6.6	20A0
MVE300/3 -30A0	306	3	0.16	2800	0.52	10.2	30A0
MVE400/3 -30A0	408	4	0.2	2800	0.58	11	30A0
MVE500/3 -40A0	510	5	0.37	2800	0.96	16	40A0
MVE700/3 -40A0	714	7	0.45	2800	1.25	16.8	40A0
MVE800/3 -50A0	815	8	0.55	2800	1.45	20.1	50A0
MVE1200/3 -50A0	1019	10	0.75	2800	1.85	21.8	50A0
MVE1300/3 -50A0	1325	13	1.1	2800	2.44	23.9	50A0
MVE1600/3 -60A0	1631	16	1.25	2800	2.94	54	60A0

Applications:

Vibrating machines in general. Vibrating screens, conveyors and vibrating extractors, compaction tables, foundry diggers, fluid beds, spiral elevators.
