Flange Connection Aluminum Butterfly Valves DN250 Pneumatic For Cement Silo

Name: Flange Connection Aluminum Butterfly Valves DN250 Pneumatic For Cement Silo
Brand: Mandiwi,WAM
Price: 122.00 USD

Quality Flange Connection Aluminum Butterfly Valves DN250 Pneumatic For Cement Silo wholesale

Place of Origin : China

Brand Name : Mandiwi,WAM

MOQ : 5 pieces

Price : $122.00/pieces 5-9 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

Delivery Time : 10-15 working days

Packaging Details : 1pcs per corrugated carton, with foam protection

Application : General

Port Size : DN250

Structure : BUTTERFLY

Customized support : OEM, ODM, OBM

Product name : Powder Butterfly Valve DN250 Valves

DN(Nominal Diameter) : 100mm(4")~400mm(16")

Driving Mode : Pneumatic , or manual

Sealing Material : NBR, EPDM

Suitable media : Powder, Water, Sewage, Admixture liquid,etc

Working Pressure : 1.0-1.6Mpa (10-16bar)

Body Material : Aluminium Alloy

Connection : Flange Connection

Working Temperature : -15℃ ~+150℃

Disc Material : Stainless Steel, Ductile Iron

Contact Now

Flange Connection Aluminum Butterfly Valve DN250 Pneumatic For Cement Silo

Products Description:

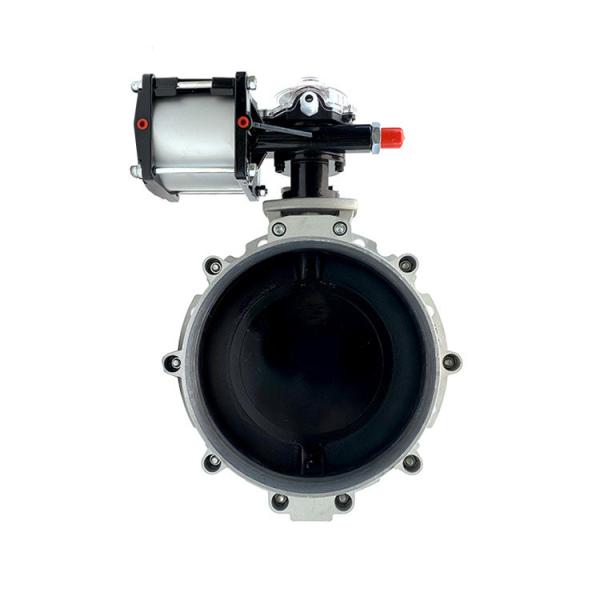

Mandiwi VFS pneumatic powder butterfly valves consist of two high-pressure aluminum alloy die-cast semi-bodies, a cast iron or stainless steel swivel disc, and a pre-stressed elastomer seal; with the solenoid valve and cylinder connected to the pneumatic conveying pipe, are fitted beneath hoppers, bins, silos, screw or other type conveyors.

The durability test of opening and closing is more than 100,000 times.

Flange Connection Aluminum Butterfly Valves DN250 Pneumatic For Cement Silo

Reliable NBR sealing material, with high sealing performance.

Flange Connection Aluminum Butterfly Valves DN250 Pneumatic For Cement Silo

with a limit swith boxes,

Flange Connection Aluminum Butterfly Valves DN250 Pneumatic For Cement Silo

Details Images of the valve body and ductile disc.

Flange Connection Aluminum Butterfly Valves DN250 Pneumatic For Cement Silo

Valve Disc

Disc in cast iron, or stainless steel. Adopt frame structure, high strength, good toughness, large flow area, small flow resistance

Sealing NBR Material,

Soft sealing material, reliable sealing performance.

Valve body

High-pressure aluminum alloy die-cast bodies

Valve Stem

High Strength stem provides maximum strength for high torque applications.

Flange Connection Aluminum Butterfly Valves DN250 Pneumatic For Cement Silo

Different sizes available.

from DN100 TO DN400.

Flange Connection Aluminum Butterfly Valves DN250 Pneumatic For Cement Silo

OTHER STYLES BUTTERFLY VALVES AVAILABLE.

1) Wafer butterfly valve body

2) Pneumatic water butterfly valve, wafer type

3) Maual water butterfly valve, with hanle

4) powder butterfly valve boday

5) pneumatic actuated butterfly valve for powdery and granular material

6) single flanged butterfly valve

7) double flanged butterfly valve

8) full linder double flanged butterfly valve, FDA sealing material

9) Flanged alluminum alloy butterfly valve with handle lever
