Powdery Material Butterfly Valves DN300/250 Sicoma With Fixed Body And Aluminum Alloy

Place of Origin : China

Model Number : DN250, DN300

Brand Name : Sicoma, Mandiwi, WAM, customized

Price : $134.00/pieces 1-9 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

MOQ : 10pieces

Delivery Time : 10-15 working days

Packaging Details : 1pcs per corrugated carton, with foam protection

Port Size : 300, 250

Power : Pneumatic

Temperature of Media : Low Temperature, Medium Temperature

Structure : BUTTERFLY

Media : powdery material

Customized support : OEM, ODM

Product name : Pneumatic Butterfly Valves

Valve Body material : Aluminum Alloy

Valve disc : Ductile Iron, Alloy

Drive mode : Pneumatic Drive

Connection type : Flange Ends

Valve Seat Seal Material : NBR, EPDM, etc

End Connection : Flange

Applicable medium : Cement, granular and powdery material

Working Temperature : -20℃~+80℃

Contact Now

Powdery Material Butterfly Valves DN300/250 Sicoma With Fixed Body And Aluminum Alloy

Product Description

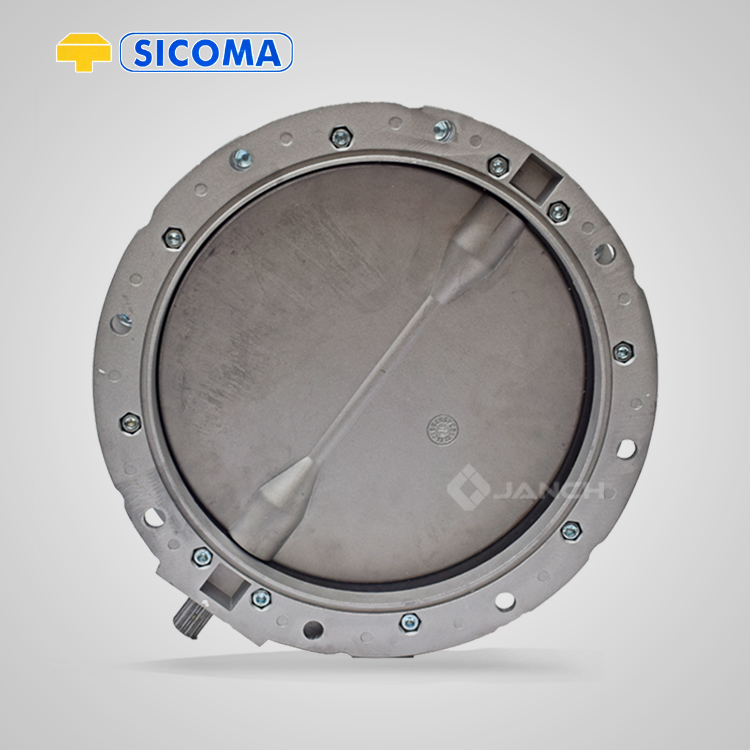

SICOMA ORIGINAL BRAND BUTTERFLY VAVLE, VALVE BODY.
OPTIONAL DEVICES:
Pneumatic actuator, limit switch box,
Aluminum Alloy:
The butterfly valve boday is made of aluminum alloy, and the valve plate is made of wear-resistant polyester amterial

Actuator:
Butterfly valve actuator and switch indicator box can be sold separately.

Powdery Material Butterfly Valves DN300/250 Sicoma With Fixed Body And Aluminum Alloy
Powdery Material Butterfly Valves DN300/250 Sicoma With Fixed Body And Aluminum Alloy
Powdery Material Butterfly Valves DN300/250 Sicoma With Fixed Body And Aluminum Alloy
Powdery Material Butterfly Valves DN300/250 Sicoma With Fixed Body And Aluminum Alloy
Powdery Material Butterfly Valves DN300/250 Sicoma With Fixed Body And Aluminum Alloy

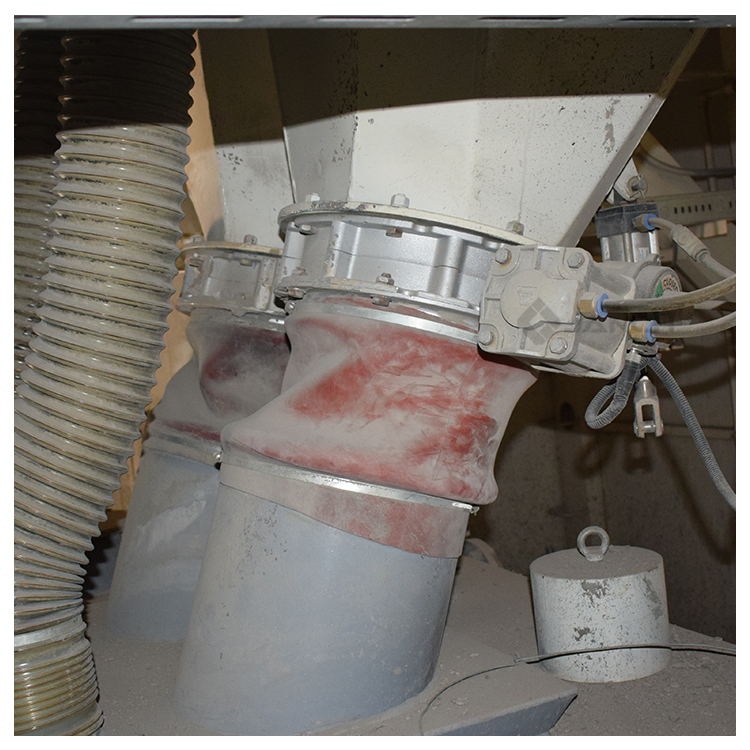

Fixed beneath the hopper,
concrete batching plant weight hopper, silo, bins. etc
Powdery Material Butterfly Valves DN300/250 Sicoma With Fixed Body And Aluminum Alloy
Powdery Material Butterfly Valves DN300/250 Sicoma With Fixed Body And Aluminum Alloy
N0. | DN
A
B
C
D
E
F
G
H
Weight
(kg)
No.1 / 150mm
150
200
230
77
164
170
48
125
8.5 | 9.1
No.1 / 200mm
200
250
280
77
215
220
48
125
10.5 | 11.3
No. 2 / 250mm
250
300
330
77
270
275
48
125
12.5 | 13.5
No. 2 / 300mm
300
350
380
77
320
325
48
125
15.5 | 16.7
