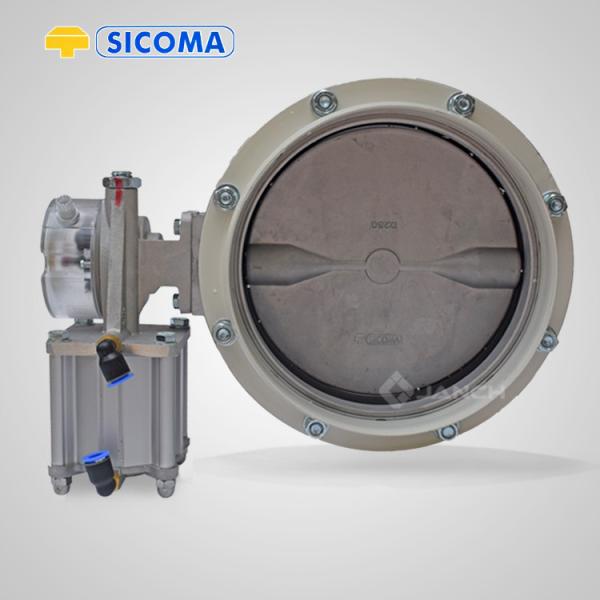

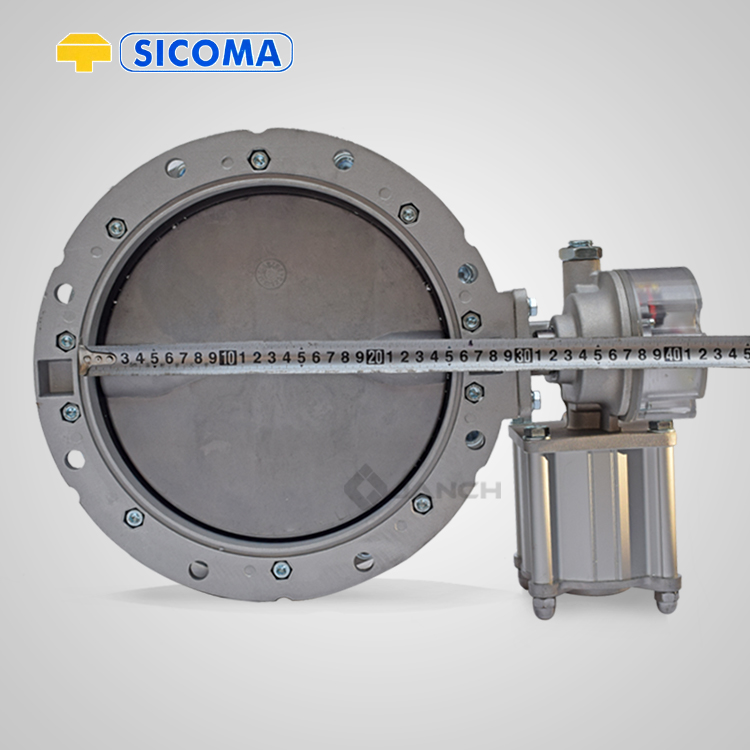

Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc

Product Categories
Hunan Jiancheng Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc

Place of Origin : China

Brand Name : Mandiwi, WAM, Sicoma, customized

Price : $134.00/pieces 1-9 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

MOQ : 5piece

Delivery Time : 10-15 working days

Packaging Details : 1pcs per corrugated carton, with foam protection

Application : General

Port Size : 250/300, 10" (DN250)/12in(DN300)

Power : Pneumatic

Temperature of Media : Low Temperature, Medium Temperature

Structure : BUTTERFLY

Customized support : OEM, ODM

Product name : Pneumatic Butterfly Valves

Body material : Aluminum Alloy

Valve disc : Ductile Iron

Drive mode : Pneumatic Drive

Connection : Flange Ends

Valve Seat Seal Material : NBR, EPDM, etc

Brand : Sicoma

Contact Now

Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc

Product Description:
SICOMA ORIGINAL BRAND BUTTERFLY VALVES, DN200, DN250, DN300, ETC
Aluminum Alloy:
The butterfly valve boday is made of aluminum alloy, and the valve plate is made of wear-resistant polyester amterial

Actuator:
Butterfly valve actuator and switch indicator box can be sold separately.

Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
N0. | DN
A
B
C
D
E
F
G
H
Weight
(kg)
No.1 / 150mm
150
200
230
77
164
170
48
125
8.5 | 9.1
No.1 / 200mm
200
250
280
77
215
220
48
125
10.5 | 11.3
No. 2 / 250mm
250
300
330
77
270
275
48
125
12.5 | 13.5
No. 2 / 300mm
300
350
380
77
320
325
48
125
15.5 | 16.7
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Packing & Delivery:
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Why Choose Us:
  • One-stop deal in bulk solida handdling and processing equipment
  • comprehensive products range
  • Excellent price--performance Ratio
  • the ideal choice for project engineers
  • ISO9001 and ISO14001 certified
  • Offering customers professional advice. smooth order management and "round the clock" spares service
  • Certified supplier of Global fortune 500 enterprices, such as Sany, Zoomlion, CRCC, Sunward, CSCEC,Shantui, and Xinzhu group, etc.
  • 5000 square meters central warehouse
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Company Profile
Flange Ends Butterfly Valve For Cement Silo Hopper Bins SICOMA Ductile Iron Valve Disc
Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants and stone crushers.
Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.
After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.
‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
