350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media

Place of Origin : China

Model Number : BV1FS300GBN

Brand Name : Mandiwi, WAM, Sicoma,

MOQ : 5 pieces

Price : $405.00/pieces 5-29 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

Delivery Time : 10-15 working days

Packaging Details : 1pcs per corrugated carton, with foam protection；

Power : Pneumatic

Temperature of Media : Low Temperature, Normal Temperature

Structure : BUTTERFLY

Customized support : OEM, ODM

Product name : Powder Butterfly Valve DN300/350 Valves

DN(Nominal Diameter) : 100mm(4")~400mm(16")

Driving Mode : Pneumatic , or manual

Sealing Material : NBR, EPDM

Suitable media : Powder, Water, Sewage, Admixture liquid,etc

Working Pressure : Low pressure

Body Material : Aluminium Alloy

Connection : Flange

Working Temperature : -15℃ ~+150℃

Disc Material : Stainless Steel, Ductile Iron

Contact Now

350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media

Products Description:

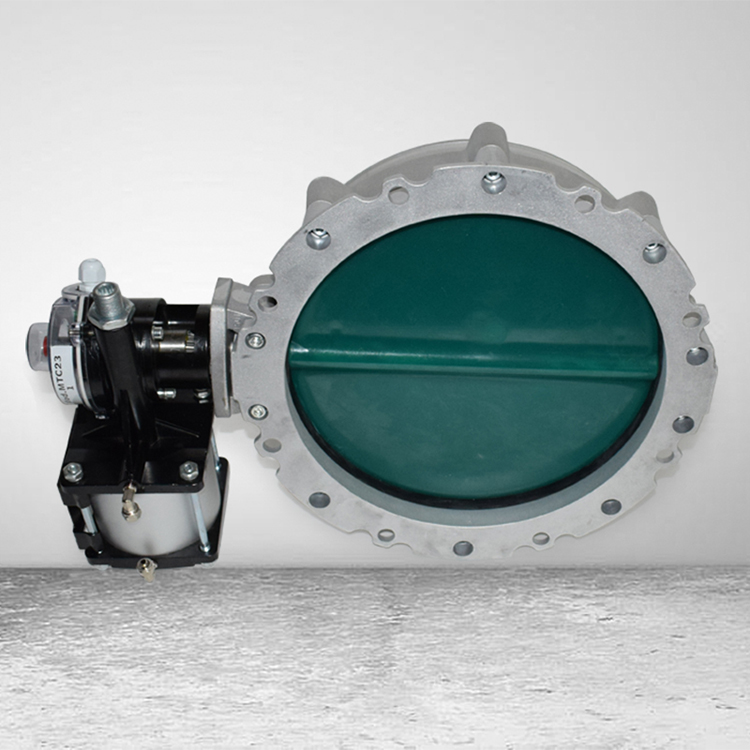

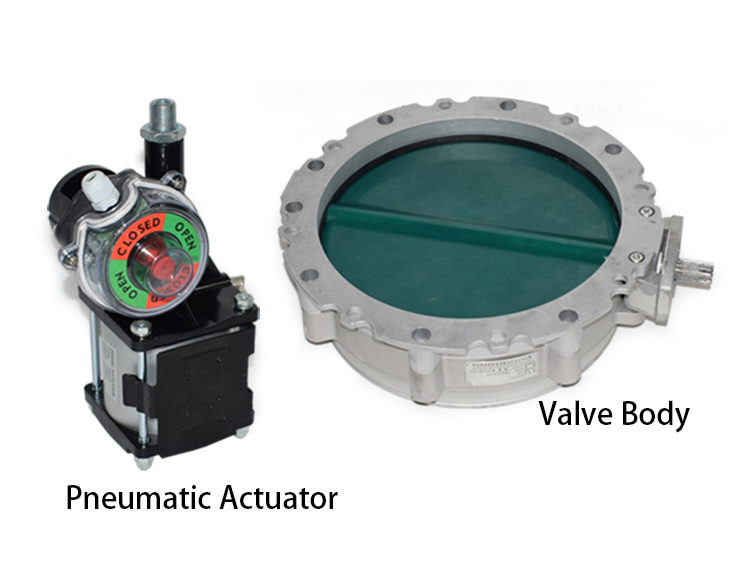

Pneumatic butterfly valves with actuator and limit swithch box.
High pressure alluminum alloy valve body
Single flange or double flange connection.
Different valve disc available.
1) Aluminum plate
2) polyurethane board
3) ductile iron plate
4) stainless steel plate
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media

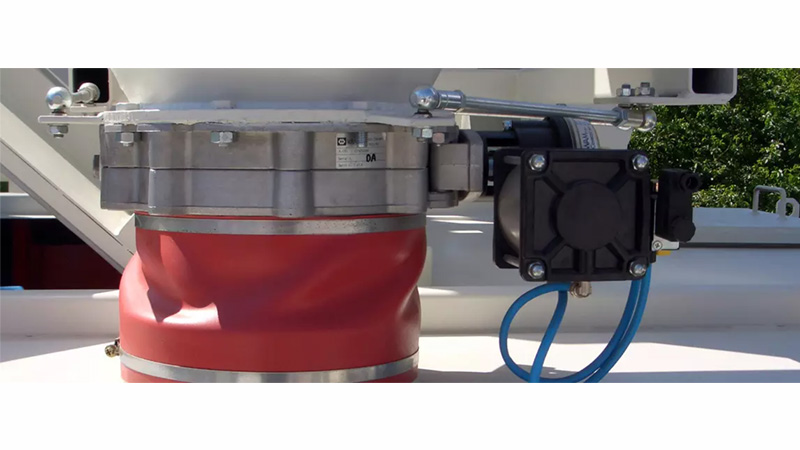

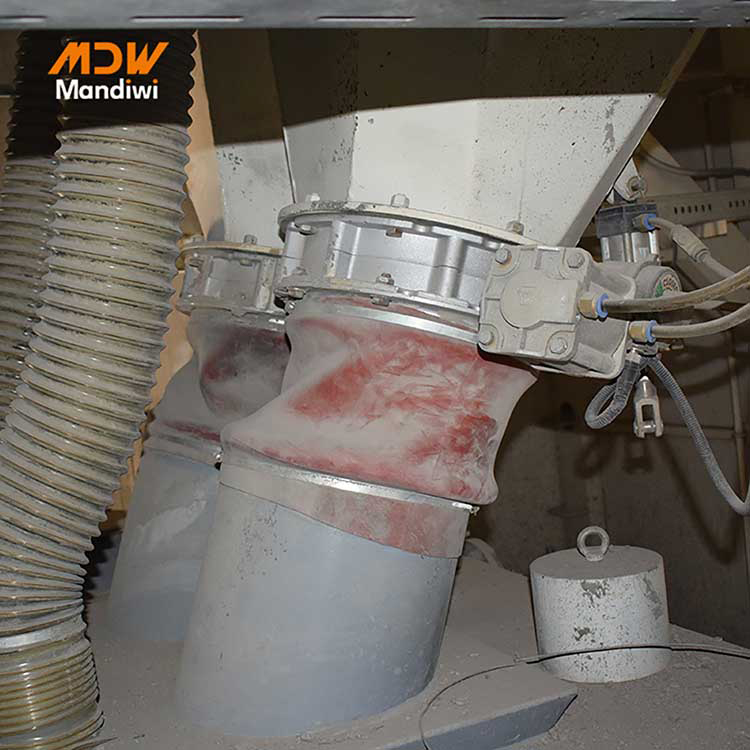

Fixed beneath the hopper
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media

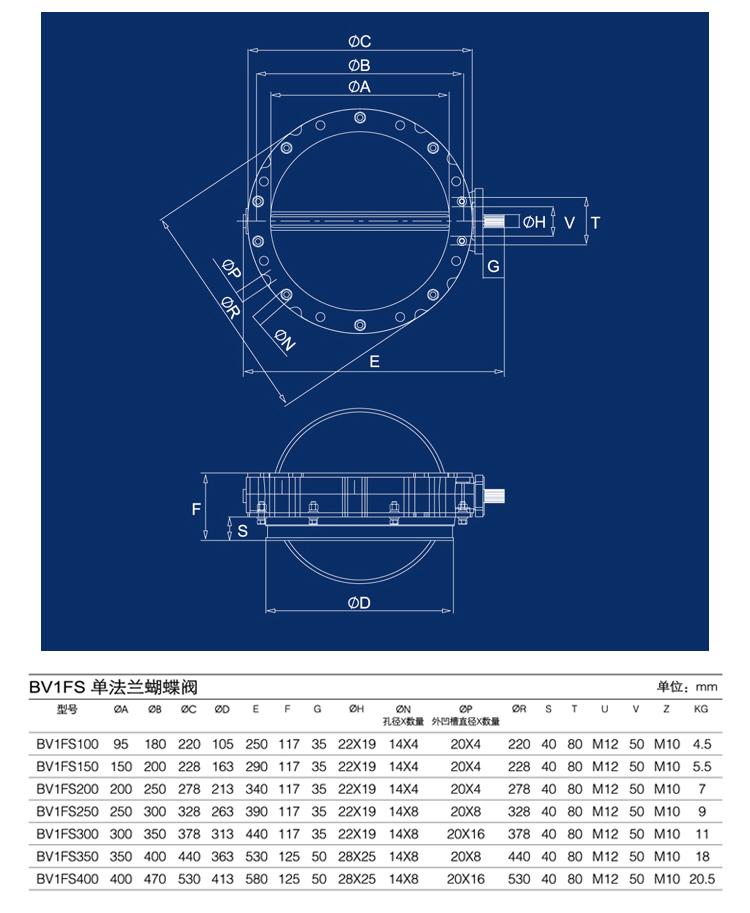

Product Paramenters:
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
Different styles available.
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
Company Profile:
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.
Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.
After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.
‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
Certifications
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
Why Choose Us
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
Product packaging
350mm Port Size Pneumatic Powder Butterfly Valve For Batching Plants Cement Media
