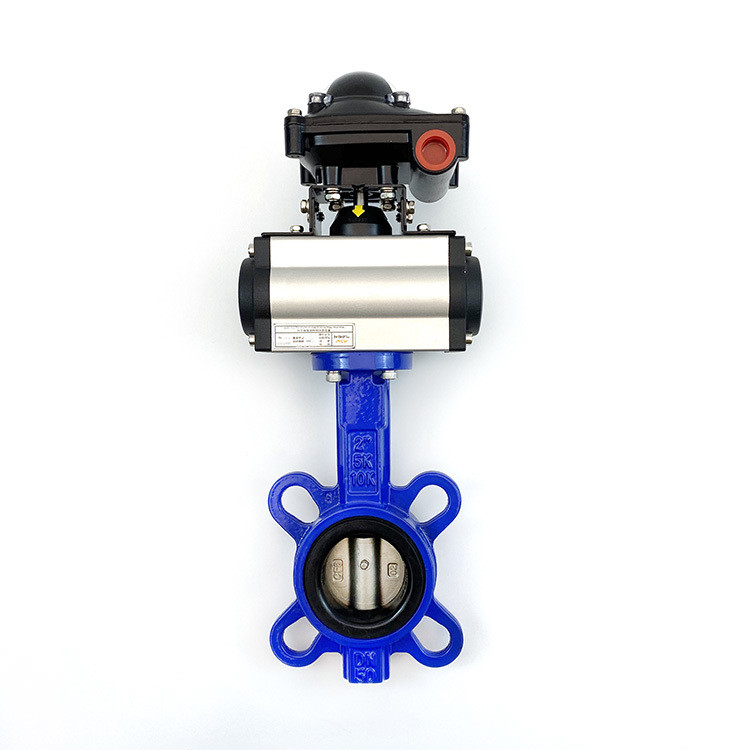

DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator

Place of Origin : China

Brand Name : MDW, Mandiwi

MOQ : 5 pieces

Price : $165.00/pieces 5-9 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

Model Number : DN50

Delivery Time : 10-15 working days

Packaging Details : 1pcs per corrugated carton, with foam protection

Application : General

Port Size : 50mm

Power : Pneumatic

Temperature of Media : Low Temperature, Normal Temperature

Structure : BUTTERFLY

Customized support : OEM, ODM, OBM, Software reengineering

Product name : Pneumatic Actuator Powder Butterfly Valves

DN(Nominal Diameter) : 50mm(4")~400mm(16")

Driving Mode : Pneumatic, or manual

Sealing Material : NBR, EPDM

Suitable media : Powder, Water, Cement, Sewage, Admixture liquid,etc

Working Pressure : 1.0-1.6Mpa (10-25bar)

Body Material : Aluminium Alloy

Connection : Wafer

Working Temperature : -20℃ ~+80℃

Disc Material : Stainless Steel, Ductile Iron

Contact Now

DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator

Products Description:

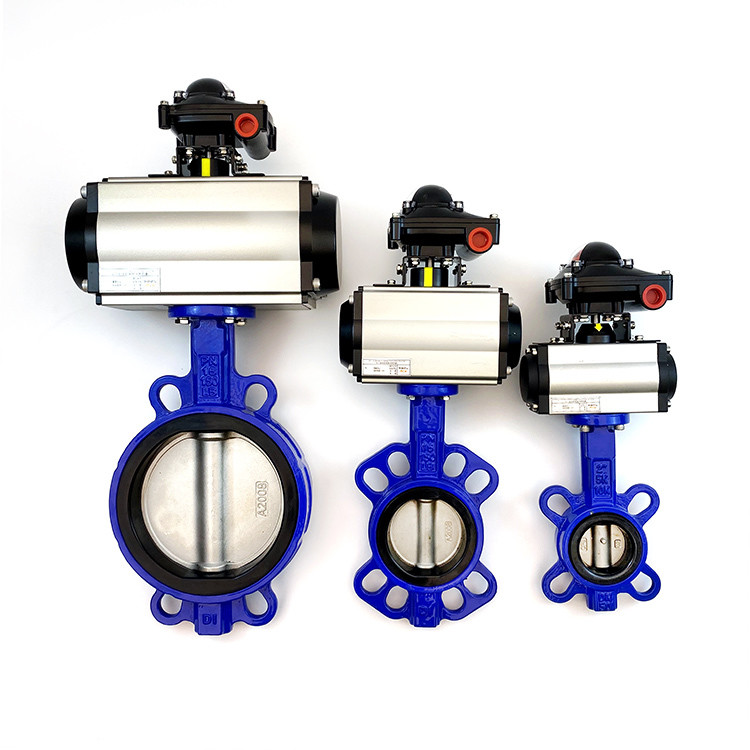

Mandiwi DN50 Wafer type pneumatic butterfly valves,
Different sizes available, Normally from DN50 to DN400.
Can be customized according to customer's requirement.
Our butterfly valves adopt advanced manufacturing technology and high-quality materials to ensure product stability and reliability. Widely used for water, liquid, powdery and granular materials.
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator
Mandiwi wafer butterfly valve is a control valve commonly used in industrial piping system.
Its working principle is based on the movement of the disc to open and close the valve.
The main components of the water wafr butterfly valve include the valve body, valve disc, valve stem, valve seal, etc.
The durability test of opening and closing is more than 100,000times.
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator
DN50 Water Wafer Butterfly Valves With NBR Sealing Material And Pneumatic Actuator

1. Swivel Disc in Stainless Steel

Water butterfly valves use stainless steel disc

Highly abrasion-resistant, corrosion resistant, good toughness, Excellent strength and small flow resistance.

2. Reliable Sealing Performance

Excellent sealing performance, effectively prevent the leakage.

Different materials available, such as NBR, EPDM, PTFE, etc.

3. NAMUR Standard Pneumatic Actuator with Anodized Aluminum Alloy Cylinder

The pneumatic actuator’s surface is anodized and hardened, with high strength, good wear resistance, high temperature resistance and corrosion resistance.

Easy to fit and handle, low maintenance cost.

4. Customization is available

Can customize according to working condition and using demands, including different materials, different colors, etc.
