Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Hunan Jiancheng Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Place of Origin : China

Brand Name : WAM

Model Number : CP101

MOQ : 5 pieces

Price : $119.00/pieces 5-49 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

Delivery Time : 3-7 working days

Packaging Details : 1pcs per box

Customized support : OEM, ODM

Product Name : WAM Pneumatic Actuator, Swivel Actuator

Application : Applied on valves to control opening and closing

Operating Temperature : -20℃~+80℃

Operating Pressure : 2~8 Bar

Contact Now

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Products Description:

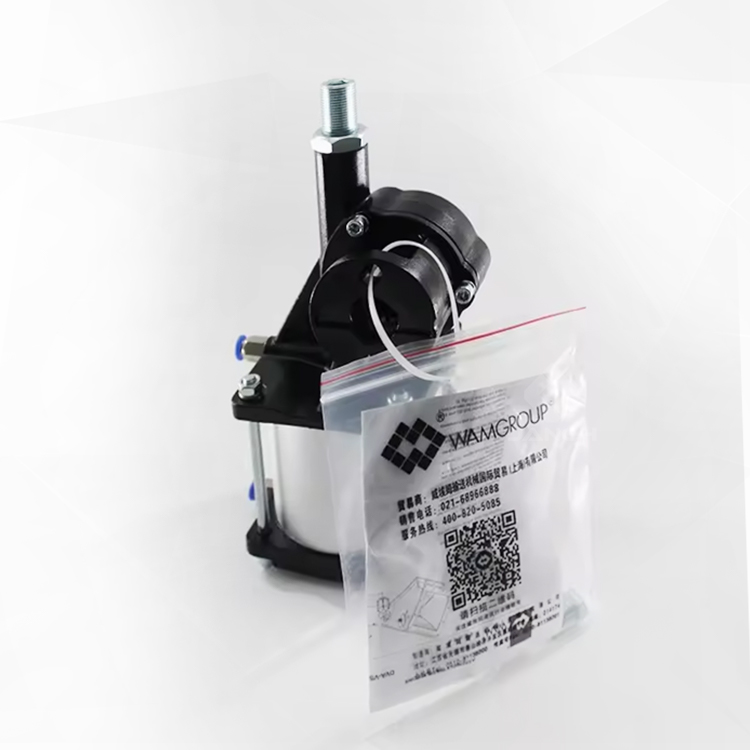

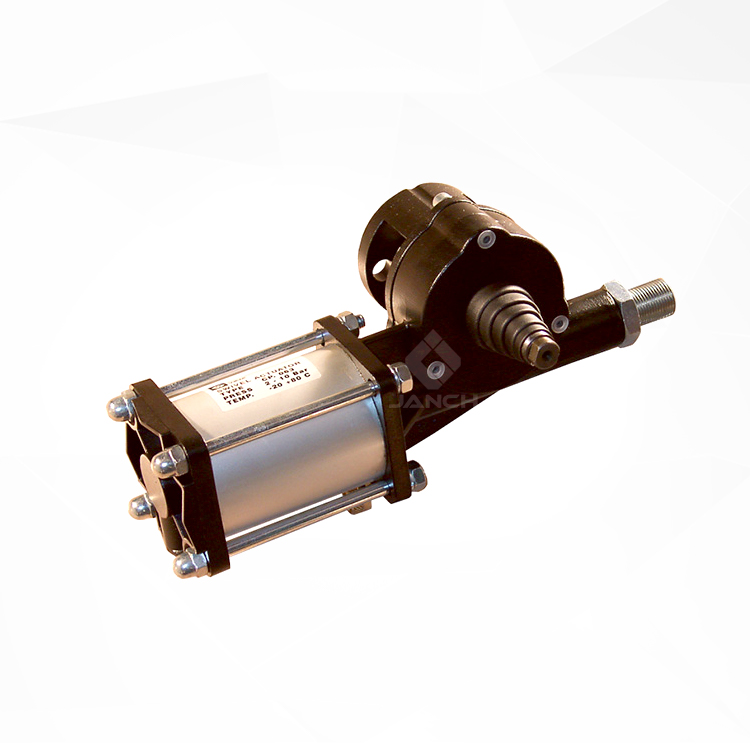

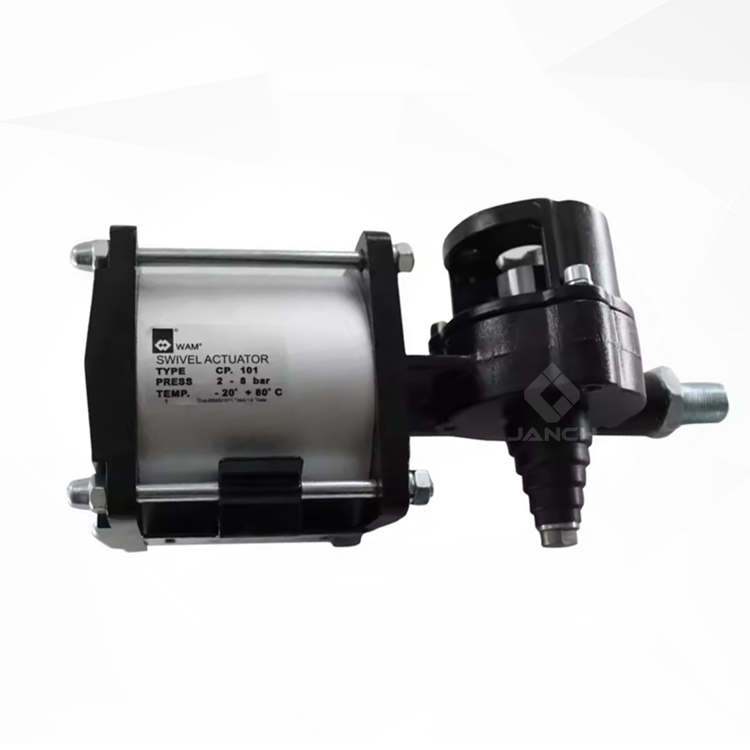

ITALY WAM CP101 Swivel Pneumatic Actuator for VFS Butterfly Valves

WAM CP series Pneumatic Actuators are suitable for 90-degree opening and closing of WAM Butterfly Valves and VFS series butterfly valves
WAM CP actuators come with splined shaft coupling bush according to DIN 5482
Operating pressure : 2 ~ 8 bar (29 ~ 116 PSI).

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

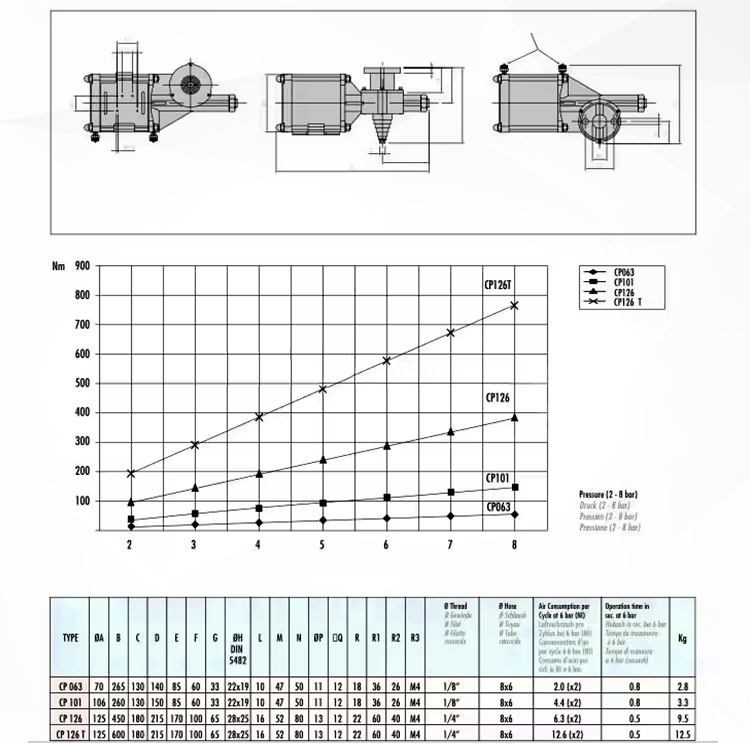

Product Paramenters

Model

Size of butterfly valve (DN)

Weight (kg)

CP63

DN100, DN150,

2.8KG

CP101

DN200, DN250, DN300

3.3kg

CP126

DN350, DN400

9.6kg

Options & Accessories

* Limit switch boxes
* 5/2 solenoid valves
* Solenoid coils

Benefits
* Sturdy, durable compact design
* Perfectly compatible accessories
* Matchless cost effectiveness due to series production

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Limit screw

The limit screw is used to adjust the valve angle. When the valve is not closed in place, the limit screw can be adjusted

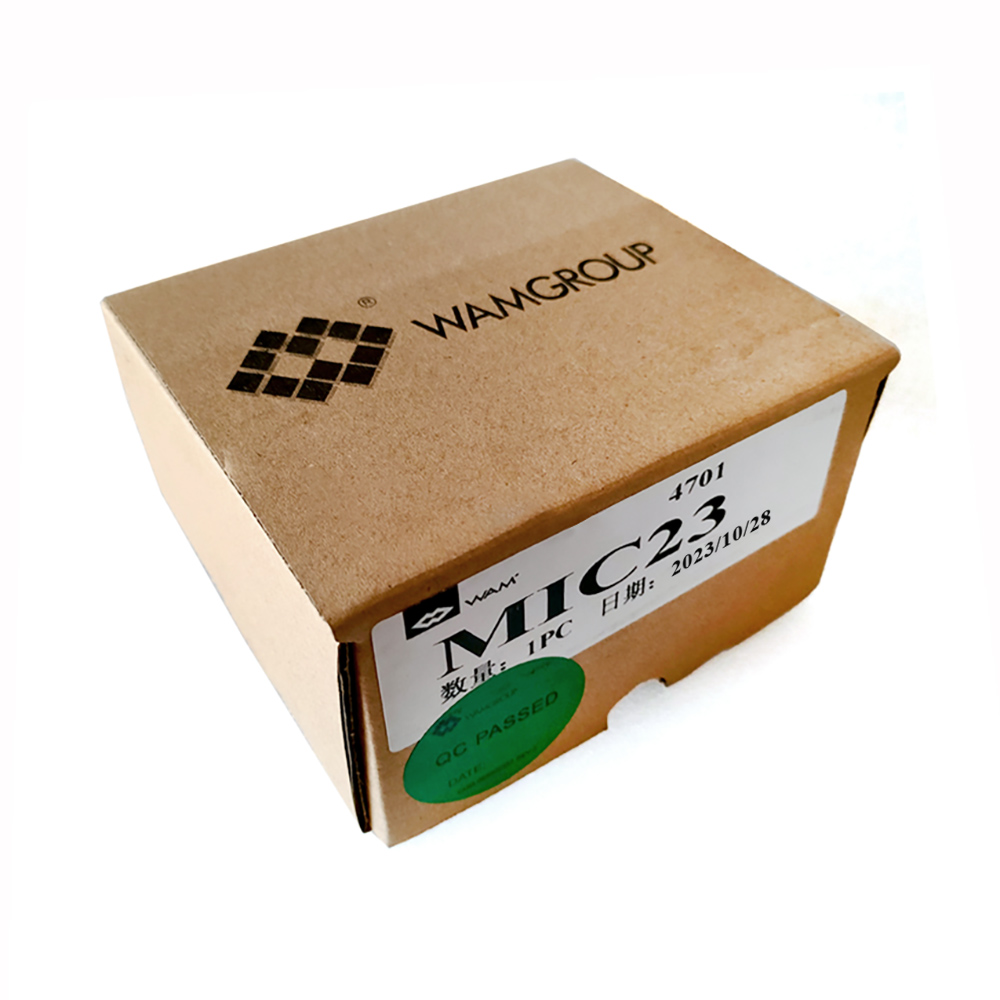

Limit Switch Box MIC23

The limit switch can indicate the valve switch status, or the electric signal can feedback the valve switch status

Connection Gear

The connecting gear is used to connect with the valve stem and has a fixed installation size

Application:

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Packaging and Shipment:

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Our Advantages:

1. Excellent Price-performance Ratio

The performance and quality are completely comparable to global similar brand products, cost saving and .

2. Comprehensive Product Range, Stocks Available

Meet the one-stop purchasing needs of customers, provide trouble-free and considerate services.

3. Certified Supplier of Famous Enterprises,

Established in-depth and long-term cooperation relationships with many internationally renowned enterprises, such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, and Xinzhu Group.

4. ISO9001 and ISO14001 Certified

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

5000 square meter central warehouse.

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

About Jiancheng Technology:

Italy WAM Accessories Pneumatic Actuator Cylinder for Concrete Batching Plant CP101/CP126/CP063

Jiancheng Technology, committed to providing comprehensive range of spares and machinery parts for concrete batching plants, concrete pumps and stone crushers. .

Jiancheng Technology, conveniently locates in Changsha, China, the global Famous City of Construction Machinery.

Has a professional team over 80 people which masters world-leading R&D technology, product manufacturing and sourcing.

There is a central three-dimensional storage center of 5,000 square meters,

and has a stock of thousands spares and components, such as rollers, bearings, reducers, sprocket chains, V-belts, vibration motors, sensors, air cylinders, lubrication pumps, hydraulic stations, wear-resistant parts, shaft end seals, silo level indicators, butterfly valves, hanging bearing, buckets, pumps, dust collectors and filters and other standard parts of many brands such as Mandivi, WAM, Amcells, Mettler Toledo, Sicoma, Nanfang, and LM, etc.

Can meet the purchasing demand for more than 90% of different kinds of spares of global mainstream batching plants, such as Sany, Zoomlion, XCMG, NFLG , Liebherr, and so on.

From supply end to sales end, Jiancheng Technology adopts ERP management system for the whole process, and delivers the regular parts on the same day of ordering, and after-sales service is available within 24 hours.

‘Protects the operation of Batching Plant and Creates the greatest value for customers’ is the motto of Jiancheng Technology.
