VFS Series Pneumatic Actuator Butterfly Valves Low Pressure Swivel Design

Place of Origin : China

Brand Name : MDW, WAM

Model Number : CP126

MOQ : 5 pieces

Price : $162.00/pieces 5-49 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

Delivery Time : 3-7 working days

Packaging Details : 1pcs per box

Customized support : OEM, ODM

Product Name : Pneumatic Actuator, Swivel Actuator, Cylinder

Application : Applied on valves to control opening and closing

Operating Temperature : -20℃~+80℃

Operating Pressure : 2~8 Bar

Contact Now

Pneumatic Actuator For VFS Series Butterfly Valves Normal Temperature Low Pressure Swivel Design

Products Description:

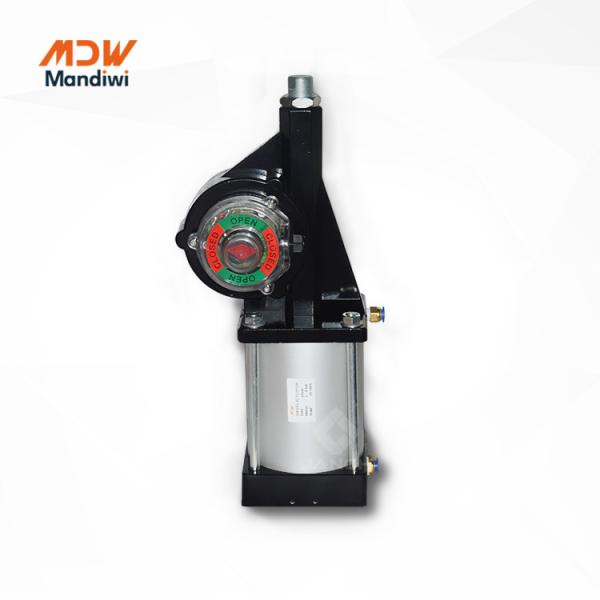

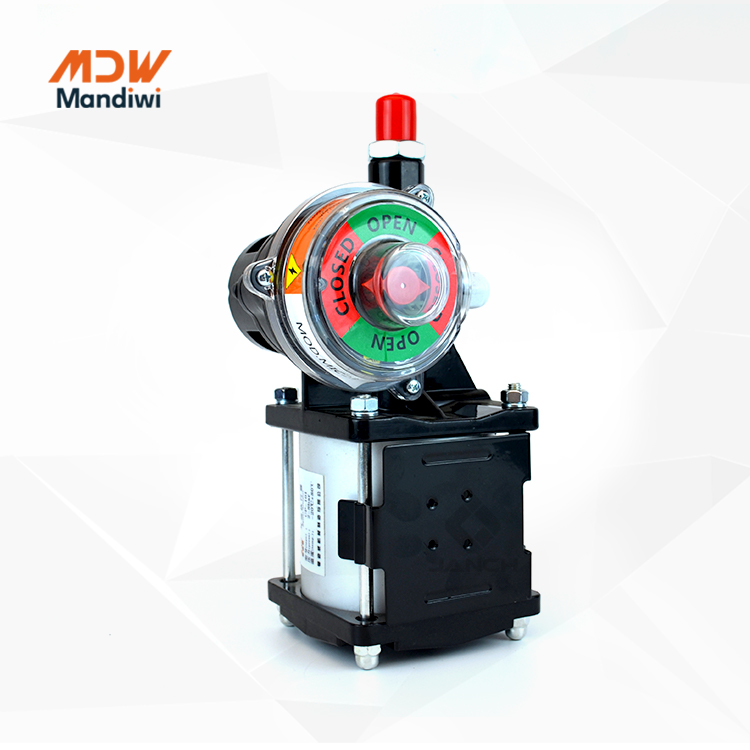

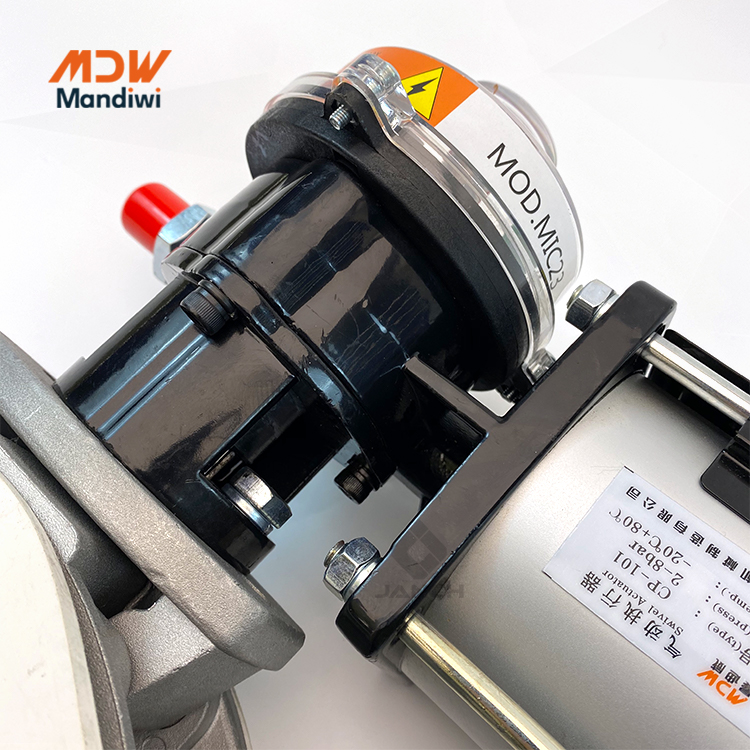

Mandiwi CP126 Swivel Pneumatic Actuator for VFS Butterfly Valves, with the limit switch box

CP series Pneumatic Actuators are suitable for 90-degree opening and closing of MDW Butterfly Valves and VFS series butterfly valves
CP actuators come with splined shaft coupling bush according to DIN 5482
Operating pressure : 2 ~ 8 bar (29 ~ 116 PSI).
VFS Series Pneumatic Actuator Butterfly Valves Low Pressure Swivel Design
VFS Series Pneumatic Actuator Butterfly Valves Low Pressure Swivel Design
VFS Series Pneumatic Actuator Butterfly Valves Low Pressure Swivel Design
VFS Series Pneumatic Actuator Butterfly Valves Low Pressure Swivel Design
Product Paramenters

Model
Size of butterfly valve (DN)
Weight (kg)
CP101
DN100, DN150, DN200, DN250, DN300
3.3kg
CP126
DN350, DN400
9.6kg
Options & Accessories
* 5/2 solenoid valves
* Solenoid coils

Benefits
* Sturdy, durable compact design
* Perfectly compatible accessories
* Matchless cost effectiveness due to series production
Application
VFS Series Pneumatic Actuator Butterfly Valves Low Pressure Swivel Design
VFS Series Pneumatic Actuator Butterfly Valves Low Pressure Swivel Design
VFS Series Pneumatic Actuator Butterfly Valves Low Pressure Swivel Design
Our Advantages:

1. One-Stop Deal in Bulk Solids Handling & Processing Equipment

2. Comprehensive Product Range

3. Industrial Quality

4. Excellent Price-performance Ratio

5. the Ideal Choice for Project Engineers

6. ISO9001 and ISO14001 Certified

6. offering customers professional advice, smooth order management and ‘round the clock’ spares service.

7. Certified Supplier of Famous Enterprises, such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, and Xinzhu Group.
