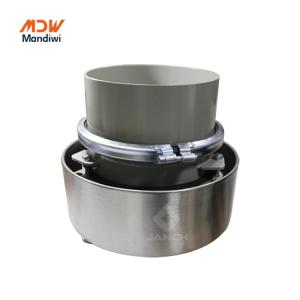

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank

Name: Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank
Brand: MDW, WAM
Price: 68.00 USD

Quality Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank wholesale

Place of Origin : China

Model Number : VCP2731B

Brand Name : MDW, WAM

MOQ : 5 pieces

Price : $68.00/pieces 5-29 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

Delivery Time : 10-15 working days

Packaging Details : Carton packing, 1set/carton

Application : General, Fixed on silo top, different indusries available

Port Size : 273mm

Warranty : 1years

Power : Pneumatic

Structure : Safety

Customized support : OEM, ODM

Product Name : spring-loaded pressure relief valves

Body diameter : 273mm (10in)

Material : Stainless Steel

Air volume : up to 7000m³/h(4120CFM)

Negaive pressure : -0.005 Bar (0.07psi)

Excess pressure : +0.05Bar (0.72psi)

Color : white, silver, yellow, or customized

Contact Now

White Gravity Explosion Automatic Silo Top Pressure Relief Valve For Safety Cement Tank

Products Description

Mandiwi (MDW) Silo safeguard, Silotop Pressure Relief Valves.

Spring-loaded pressure relief valves,

- Painted mild-steel or 304 stainless steel casing material

- Stainless-steel weather protection cover
- Adjustment Kit (Springs)

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank

	SIZE 273 (mm)
A	400
B	356
C	125
D	120
E	325
φF	273
NW(kg)	9.5

Application

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank

Packaging and Shipment

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank

Exhibition

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank

Company Profile

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank

Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.

Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.

After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.

‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank

Our Clients

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank

Certifications

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank

Why Choose Us

Gravity Explosion Automatic Silo Top Pressure Relief Valves White For Cement Tank
