Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants

Place of Origin : China

Brand Name : Mandiwi, WAM

MOQ : 5 pieces

Price : $56.00/pieces 5-29 pieces

Payment Terms : T/T, LC, Trade assurance Order, Western Union

Model Number : 273

Delivery Time : 10-15 working days

Packaging Details : Carton packing, 1set/carton

Condition : New

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining

Machinery Test Report : Not Available

Marketing Type : Ordinary Product

Warranty : 1 Year

Product Name : spring-loaded pressure relief valves

Body diameter : 273mm (10in)

Material : Carbon Steel

Air volume : up to 7000m³/h(4120CFM)

Negaive pressure : -0.005 Bar (0.07psi)

Excess pressure : +0.05Bar (0.72psi)

Application : Fixed on silo top, different indusries available

Contact Now

Explosion-Proof Valve For Cement Silo Top Pressure Relief In Concrete Batching Plants

Products Description:

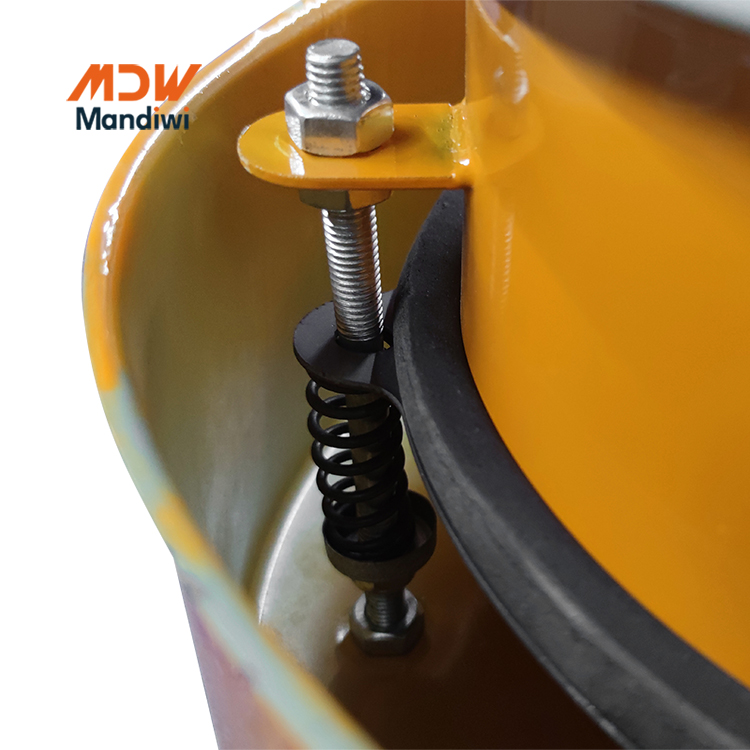

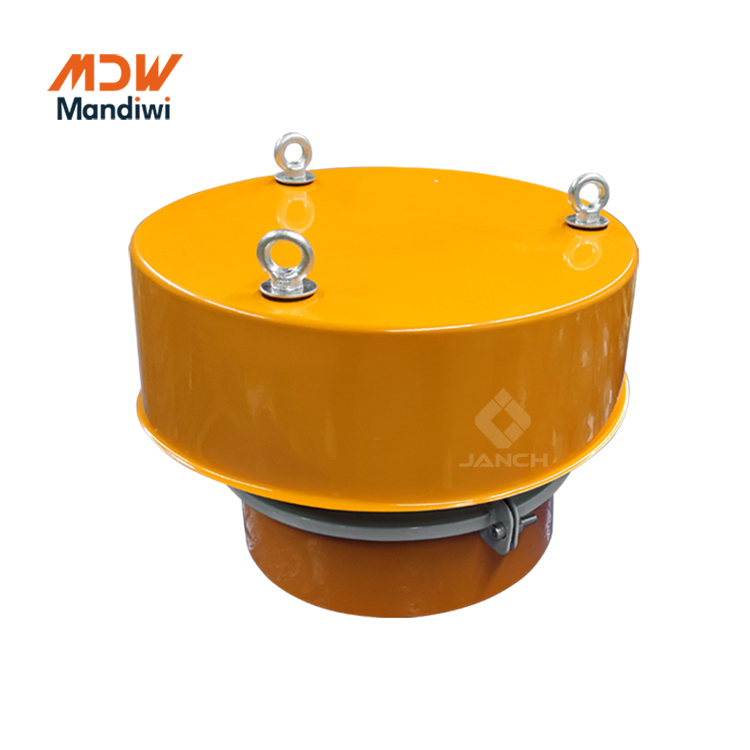

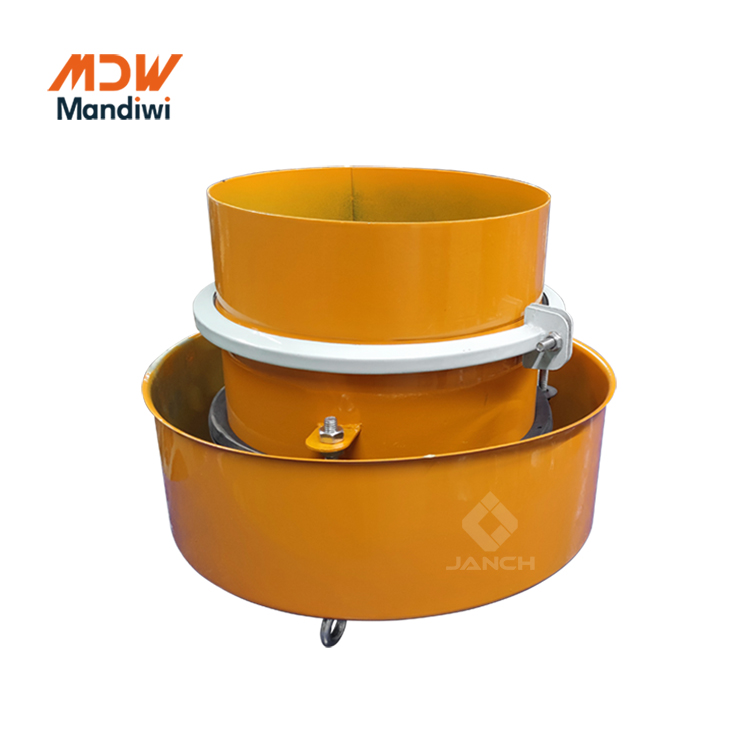

MDW Pressure Relief Valves consist of a cylindrical casing with a bottom flange to be connected with a spigot welded on the silo roof, a disc shape inner steel lid for negative pressure operation held in position by a central spring rod, an outside steel ring for excess pressure kept in position by three spring rods, gaskets, and a weather protection cover.

Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Application: SILO TOP

Features

  • Flow rate: up to 13,000 m3/h (7,650 cfm)
  • Painted carbon steel or 304 stainless steel casing
  • Stainless steel weather protection cover
  • Mechanical set-up for inductive signalling sensor
  • Preset for maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)

Benefits

  • Lightweight design and reduced overall dimensions for extremely comfortable handling
  • Easy to fit
  • Quick maintenance

Options

  • ATEX-certified version
  • Compliance with European Regulation (EC) No. 1935/2004
  • Optionally different settings available
  • Inspection hatch
  • Inductive sensors
  • Bird net
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants

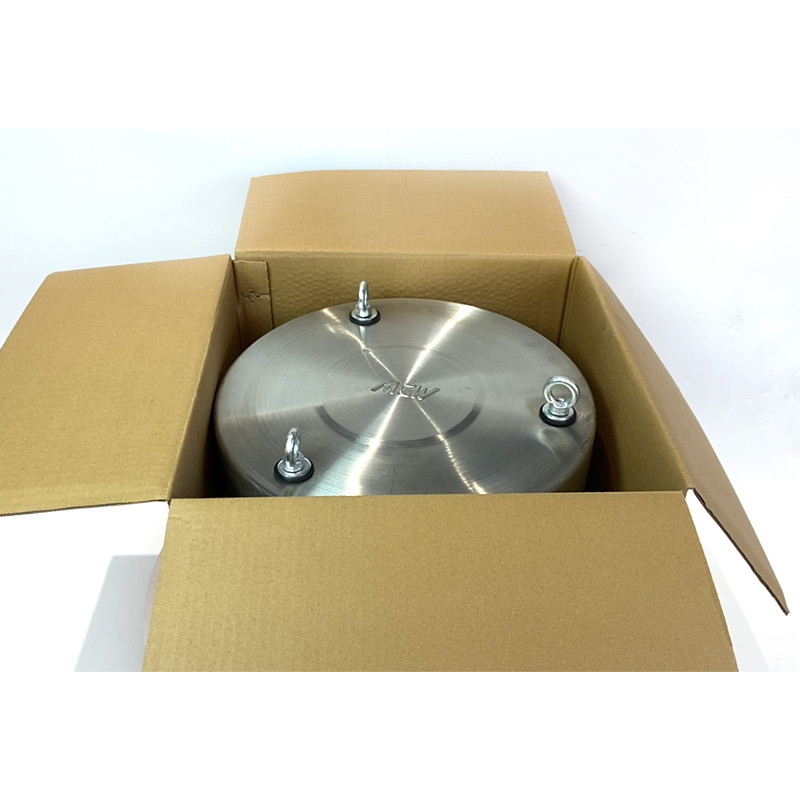

Packaging and Shipment
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Exhibition
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Our Clients
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Company Profile
Cement Silo Top Pressure Relief Valves Explosion Proof In Concrete Batching Plants
Hunan Jiancheng Technology Co., Ltd. is an industry and trade integrated enterprise focusing on the R&D and manufacturing of Mechanical Components and Spares for Batching Plants.
Mandiwi (MDW), as an independent brand under Jiancheng Technology, has established an product R&D laborary based on studying big data on the actual working conditions of global concrete machinery and equipment, now providing more cost-effective, high-quality and longer service life products and spares, including Valves, Level Monitoring Components, Vibrators, Dust Filters and Flow Aids, Screw Conveyors and Parts, Concrete Mixers, etc.
After years of development, the MDW has built in-depth cooperation relationships with many internationally renowned enterprises such as Sany, Zoomlion, CRCC, Sunward, CSCEC, Shantui, Xinzhu, etc. And our products have exported to Europe, North America, South Asia, West Asia, Middle East, Africa and other countries and regions.

‘Focus, Simplicity, Efficiency and Reliability ’ are the design concepts that the MDW brand has always adhered to since its establishment.
‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
