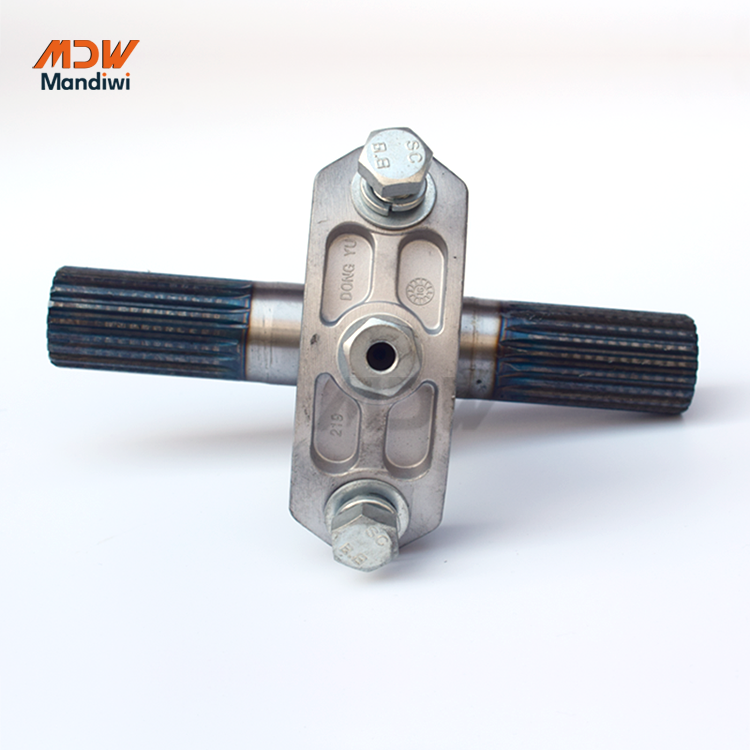

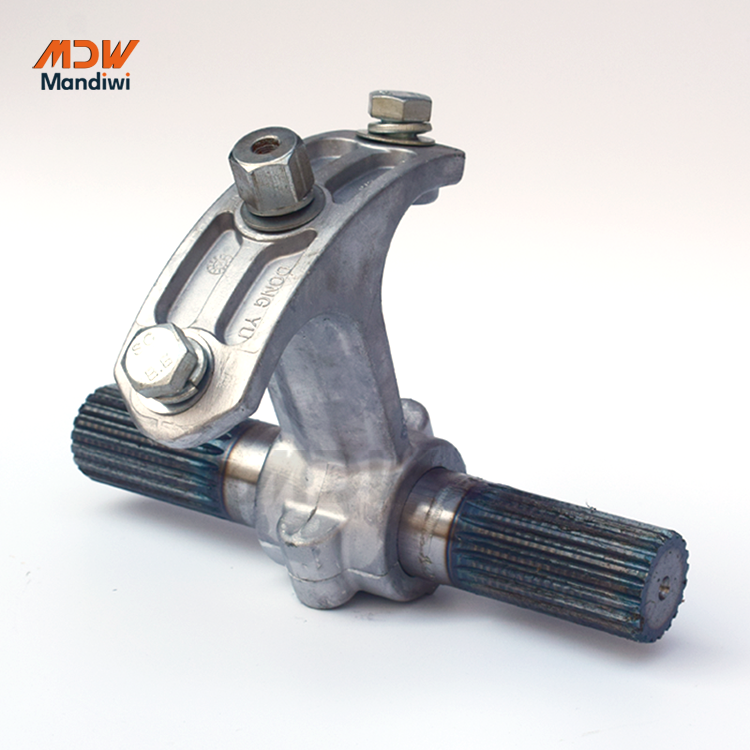

Aluminium Alloy Bearings 219/273 For Intermediate Hanger In SICOMA WAM Screw Conveyor
Alluminum Alloy Intermediate Hanger Bearings for screw conveyor, WAM, Sicoma, etc.
WAM /sicoma Intermediate Hanger Bearing for 323mm screw conveyor Code for ES168 XLR040B015T44
Code for ES193 XLR040B017T44
Code for ES219 XLR040B020T44
Code for ES273 XLR040B025T44
Code for ES323 XLR040B030T44
Screw size: M14
Shaft teeth: 20 teeth, shaft diameter 40mm
| Code | φ
Shaft | φ
Screw | A | B | C | φD | E | F | G | L | DIN5482
φM | KG |
| XLR028B010T44 | 028 | 114 | 54 | 35 | 30 | M 10 | 8 | 65 | 40 | 170 | 28x25 | 1.7 |
| XLR028B012T44 | 028 | 139 | 66.5 | 35 | 30 | M 10 | 10 | 65 | 40 | 170 | 28x25 | 1.8 |
| XLR028B015T44 | 040 | 168 | 80 | 55 | 51 | M 14 | 15 | 85 | 75 | 245 | 40x36 | 3.5 |
| XLR028B017T44 | 040 | 193 | 92.5 | 55 | 51 | M 14 | 15 | 85 | 75 | 245 | 40x36 | 3.9 |
| XLR028B020T44 | 040 | 219 | 105.5 | 55 | 51 | M 14 | 15 | 85 | 75 | 245 | 40x36 | 4.3 |
| XLR028B025T44 | 040 | 273 | 132.5 | 55 | 51 | M 14 | 15 | 85 | 75 | 245 | 40x36 | 4.5 |
| XLR028B030T44 | 040 | 323 | 157.5 | 55 | 51 | M 14 | 15 | 85 | 75 | 245 | 40x36 | 5 |
Hunan Jiancheng Technology Co., Ltd. is focusing on the R&D, manufacturing and marketing of Mechanical Components and Spares for Concrete Batching Plants, Concrete pumps and stone crushers.
Has a professional team over 80 people which masters world-leading R&D technology, product manufacturing and sourcing.
There is a central three-dimensional storage center of 5,000 square meters,
and has a stock of thousands spares and components, such as rollers, bearings, reducers, sprocket chains, V-belts, vibration motors, sensors, air cylinders, lubrication pumps, hydraulic stations, wear-resistant parts, shaft end seals, silo level indicators, butterfly valves, hanging bearing, buckets, pumps, dust collectors and filters and other standard parts of many brands such as Mandivi, WAM, Amcells, Mettler Toledo, Sicoma, Nanfang, and LM, etc.
Can meet the purchasing demand for more than 90% of different kinds of spares of global mainstream batching plants, such as Sany, Zoomlion, XCMG, NFLG , Liebherr, and so on.
‘Focus, Simplicity, Efficiency and Reliability’ are the design concepts that the MDW brand has always adhered to since its establishment.
‘Escorting the operation of the mixing station and creating maximum value for customers’ is the company mission pursued by all MDW staffs.
1. One-Stop Deal in Bulk Solids Handling & Processing Equipment
2. Comprehensive Product Range
3. the Ideal Choice for Project Engineers
4. Excellent Price-performance Ratio
5. offering customers professional advice, smooth order management and ‘round the clock’ spares service.
Product Tags:
|
|
Intermediate Hanger Aluminium Alloy Bearings 219/273 In SICOMA WAM Screw Conveyor Images
|
